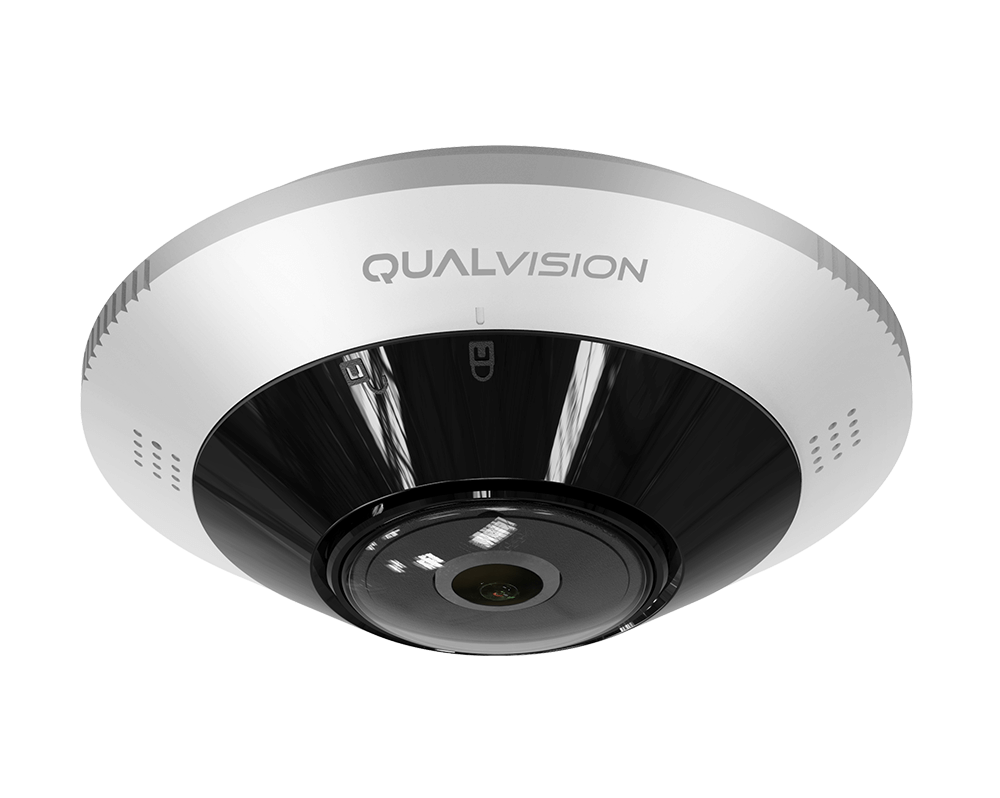

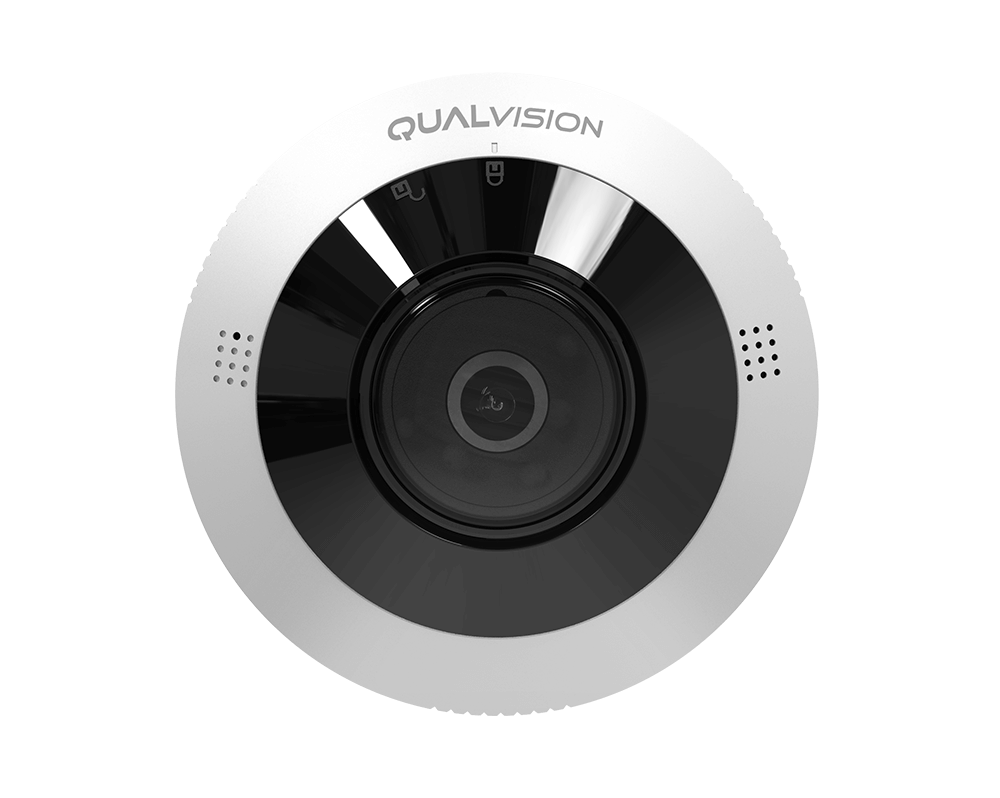

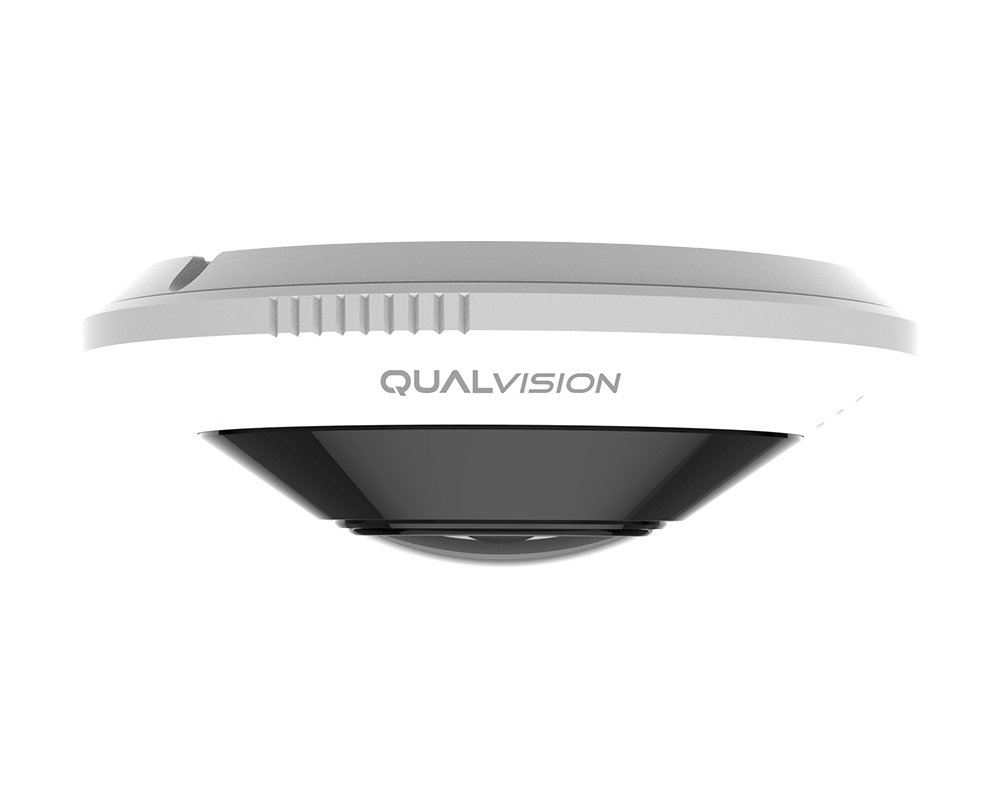

6MP Fisheye Camera

QV-IPC81365BY01-TPMS

6MP Fisheye Camera

High quality imaging with 6MP resolution

Efficient H.265+ compression technology

Built-in microphone and speaker for real-time audio security

Multiple dewarp modes

Water and dust resistant (IP67)

Camera

Image Sensor

1/2.5" Progressive Scan CMOS Sensor

Min. Illumination

0.008 lux (Color), 0 Lux (IR on)

Illumination Distance

20m (IR light)

Strobe Light

N/A

Smart IR

Support

Shutter Time

Auto/Manual, 1/3 ~ 1/100000 s

Pan/Tilt/Rotation Range

N/A

Day/Night

IR cut filter

Wide Dynamic Range

DWDR

Digital Noise Reduction

3D DNR

Lens

Focal Length

1.68 mm

Aperture

F2.0

FOV

Horizontal FOV: 180°, vertical FOV: 180°

Lens Mount

M12

DORI

DORI

1.68 mm, D: 33 m, O: 13 m, R: 6.5 m, I: 3.3 m

Compression Standard

Video Compression

H.264/H.264+/H.265/H.265+/MJPEG

H.264 Codec Profile

Base/Main/High profile

H.265 Codec Profile

Main profile

Video Bit Rate

11 Kbps ~ 10 Mbps

Triple Streams

N/A

Audio Compression

G.711A, G.711U

Audio Bit Rate

64 Kbps


Max. Image Resolution

2560 × 2560

Main Stream











Fisheye

50HZ: 25fps (2560 × 2560, 1920 × 1920)

60HZ: 30fps (2560 × 2560, 1920 × 1920)

Panoramic

50HZ: 15fps (1920 × 1080, 1280 × 720)

60HZ: 15fps (1920 × 1080, 1280 × 720)

4 PTZ

50HZ: 15pfs (1024 × 768)

60HZ: 15pfs (1024 × 768)

Fisheye + Panoramic + 3 PTZ

50HZ: 25fps (1920 × 1920) +15fps (1920 × 1080) + 15fps (1024 × 768) *3

60HZ: 30fps (1920 × 1920) +15fps (1920 × 1080) + 15fps (1024 × 768) *3

Fisheye + 4 PTZ

50HZ: 25fps (1920 × 1920) + 15fps (1024 × 768) *4

60HZ: 30fps (1920 × 1920) + 15fps (1024 × 768) *4

Panoramic + 4 PTZ

50HZ: 15fps (1920 × 1080, 1280 × 720) + 15fps (1024 × 768) *4

60HZ: 15fps (1920 × 1080, 1280 × 720) + 15fps (1024 × 768) *4

Sub Stream











Fisheye

50HZ: 25fps (960 × 960, 480 × 480)

60HZ: 30fps (960 × 960, 480 × 480)

Panoramic

50HZ: 15fps (704 × 576,352 × 288)

60HZ: 15fps (704 × 480 , 352 × 240)

4 PTZ

50HZ: 15pfs (640 × 480)

60HZ: 15pfs (640 × 480)

Fisheye + Panoramic + 3 PTZ

50HZ: 25fps (960 × 960, 480 × 480) +15fps (704 × 576) + 15fps (640 × 480) *3

60HZ: 30fps (960 × 960, 480 × 480) +15fps (704 × 480) + 15fps (640 × 480) *3

Fisheye + 4 PTZ

50HZ: 15fps (960 × 960, 480 × 480) + 15fps (640 × 480) *4

60HZ: 15fps (960 × 960, 480 × 480) + 15fps (640 × 480) *4

Panoramic + 4 PTZ

50HZ: 15fps (704 × 576 , 352 × 288) + 15fps (640 × 480) *4

60HZ: 15fps (704 × 480 , 352 × 240) + 15fps (640 × 480) *4

Third Stream

N/A

Image Setting

Brightness/Contrast/Saturation/Hue/Sharpness

BLC

Support

HLC

Support

ROI

Support

Smart Feature

Basic Event

Motion detection, Video Shelter

Smart Event

Line crossing detection, Area intrusion, Region Entrance, Region Exiting

Network

Network Storage

NAS (NFS, SMB/CIFS)

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P

System Compatibility

Onvif (Profile S, G,T), CGI, SDK

Security

Password protection, complicated password, HTTPS encryption, IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.1,1.2, WSSE and digest authentication for Open Network Video Interface

User

Up to 40 users

Web Browsers

Plug-in required live view: IE 10, IE 11

Local service: Chrome 57.0+, Firefox 52.0+

Mobile Surveillance

IOS, Android

Interface

Communication interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-board storage

Up to 256 GB

MIC

Support

Speaker

Support

Audio I/O

1/1

Alarm I/O

1/1

Reset button

Support

General

Operating Conditions

-40°C ~ 60°C (-40°F ~ 140°F)

Humidity 95% or less (non-condensing)

Power Supply

DC 12 V ± 25%

POE

PoE (802.3 af)

Power Consumption

MAX.9 W

Protection Level

IP67

Material

Metal

Dimensions

Φ 152 mm × 53 mm (Φ 5.98'' × 2.08'')

Gross Weight

724 g (1.59 lb)
