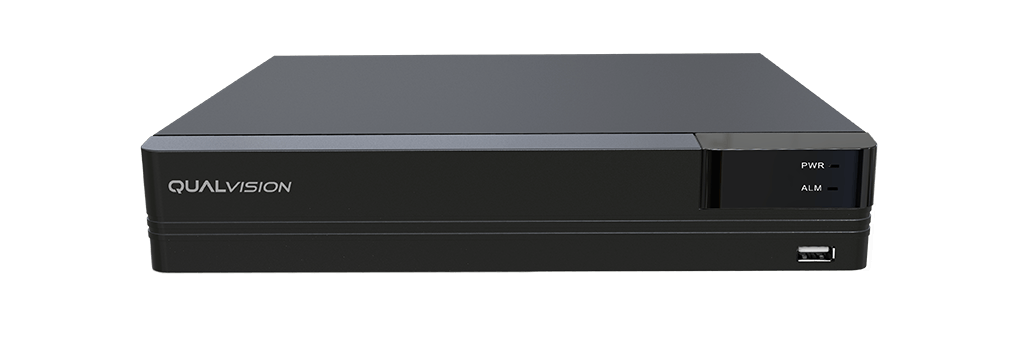

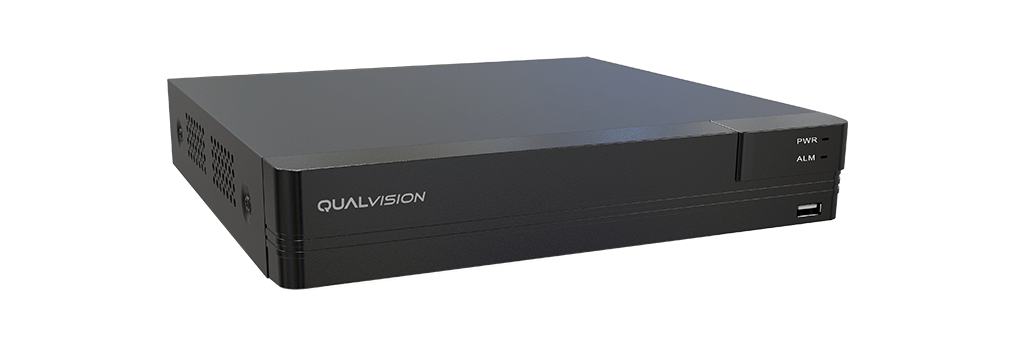

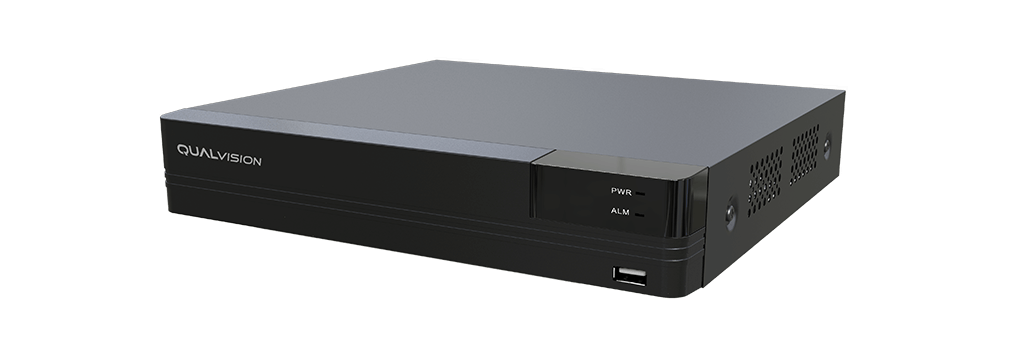

QV-NVR6RA64P-W18

Video & Audio Input

IP Video Input

64-ch

Audio Input

1-ch, RCA

Video & Audio Output

HDMI 1 Output

7680 × 4320/30Hz,3840 × 2160/30Hz,1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

HDMI 2 Output

3840 × 2160/30Hz,,1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

HDMI 3 Output

1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

HDMI 4 Output

1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA 1 Output

1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA 2 Output

1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output Mode

2-ch VGA, 4-ch HDMI video output
Simultaneous mode:
max. resolution of HDMI1 is 8K,
max. resolution of HDMI2 is 4K,
max. resolution of VGA1 VGA2 and HDMI3 is 1080p;
Heterologous mode:
Simultaneous video source output for VGA1 and HDMI4,
Simultaneous video source output for VGA2 and HDMI2,
max. resolution of HDMI1 and HDMI2 is 4K,
max. resolution of HDMI3 and HDMI4 is 1080P,
max. resolution of VGA1 and VGA2 is 1080P

Main Screen (screen split)

1, 4, 8, 9,16, 25, 36, 64 screen split

Secondary Screen (screen split)

1, 4, 8, 9, 16, 25, 36 screen split

Audio Output

2-ch, RCA

Recording

Compression

H.265+/H.265/H.264+/H.264

Resolution

12MP/8MP/5MP/4MP/3MP/1080P/720P/D1/CIF/QCIF

Playback & Backup

Playback Resolution

12MP/8MP/5MP/4MP/3MP/1080P/720P/D1/CIF/QCIF

Decoding Capability

32-ch 1080P @ 30fps

16-ch 4Mp @ 30fps

8-ch 8Mp @ 30fps

5-ch 12Mp @ 30fps

Synchronous Playback

16-ch 1080P @ 30fps/16-ch 4Mp @ 30fps/8-ch 8Mp @ 30fps/5-ch 12Mp @ 30fps

Playback Mode

Smart Playback/Normal/Time Division/ Label/ Event/ Picture Playback

Backup Mode

USB Device/Network/eSATA

Advanced Features

Smart Detection

Area Intrusion, Line crossing, Region Entrance/Region Exiting, Fast Moving, Object Missing, Unattended Object, Loitering Detection, Parking Detection, Face Detection, People Gathering Detection, Blurred detection, Scene change detection, Audio exception detection, SMD, PP

Smart Playback

Face Detection/Line Crossing/Are Intrusion/Motion Detection

Cloud Storage

Support

Cloud Upgrade

Support

Network

Incoming Bandwidth

1024Mbps (without raid) /512Mbps (raid)

Outgoing Bandwidth

800Mbps (without raid) /400Mbps (raid)

Ethernet

2 x 2.5GE self-adaptive Ethernet interface

Network Function

HTTPs, HTTP, TCP/IP, IPv4, UPnP, RTSP, UDP, SMTP, SNMP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, P2P, ONVIF

Smart Phone

IOS (iPhone, iPad) , Android (Phone, Pad)

Hard Disk

SATA

8 SATA interfaces

Capacity

Up to 22TB capacity for each HDD

External Interface

USB Interface

Front panel: 2 × USB 2.0

Rear panel: 2 × USB 3.0

eSata

1 x eSATA

RS 485

1-ch

RS 232

1-ch

12V Out

1-ch

Alarm In

16-ch

Alarm Out

8-ch

General

Power Supply

AC 100 ~ 240V

Power Consumption

≤ 20W (without HDD)

Working Environment

-10°C~ +55°C (14°F ~ 131°F)/10% ~ 90%RH

Dimension (W×D×H)

440 × 452 × 90 mm (17.32" × 17.79" × 3.54")

Weight

7.9 kg (17.41 lb)
