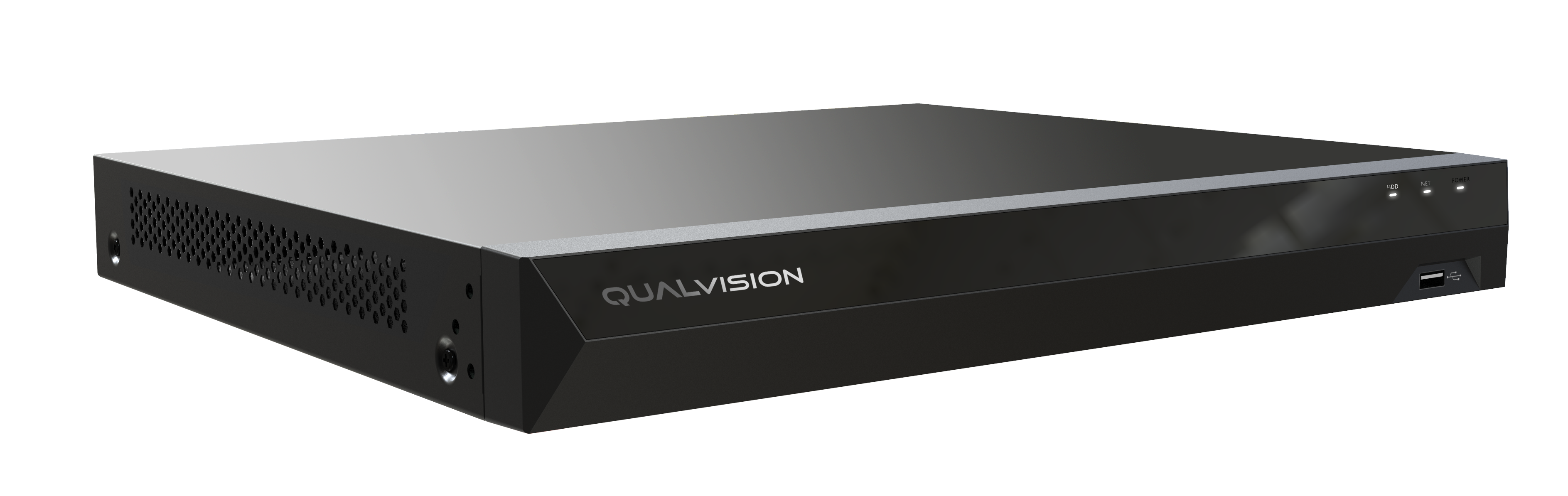

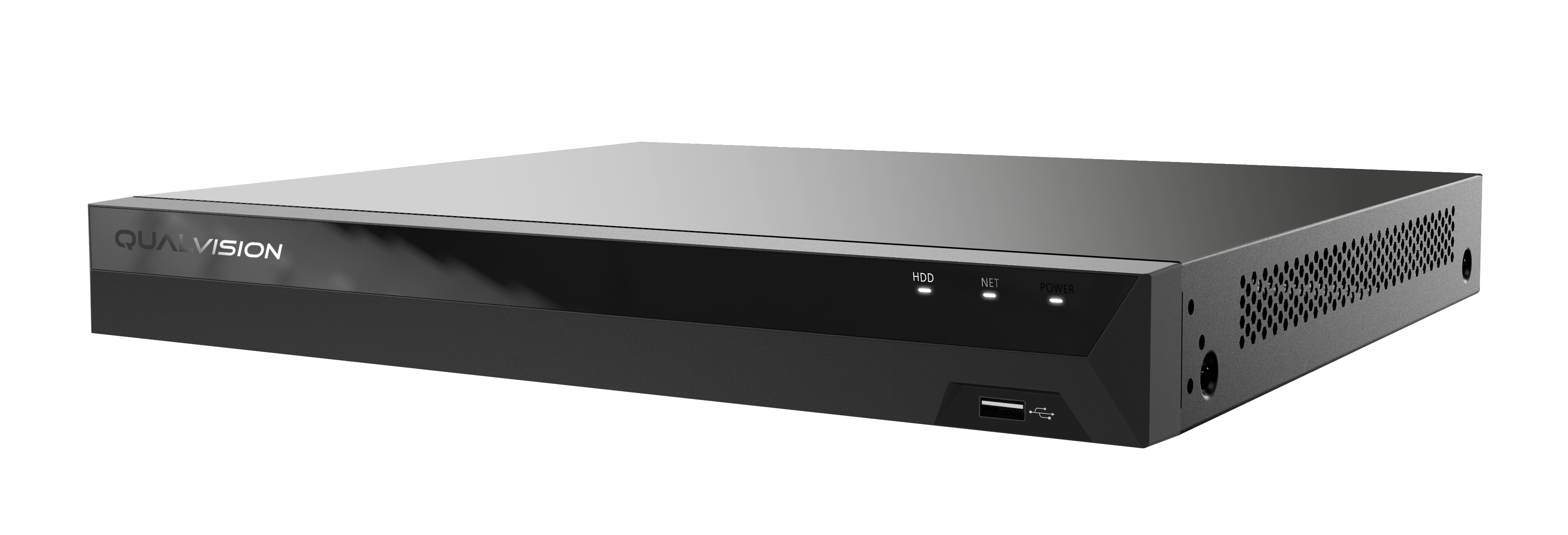

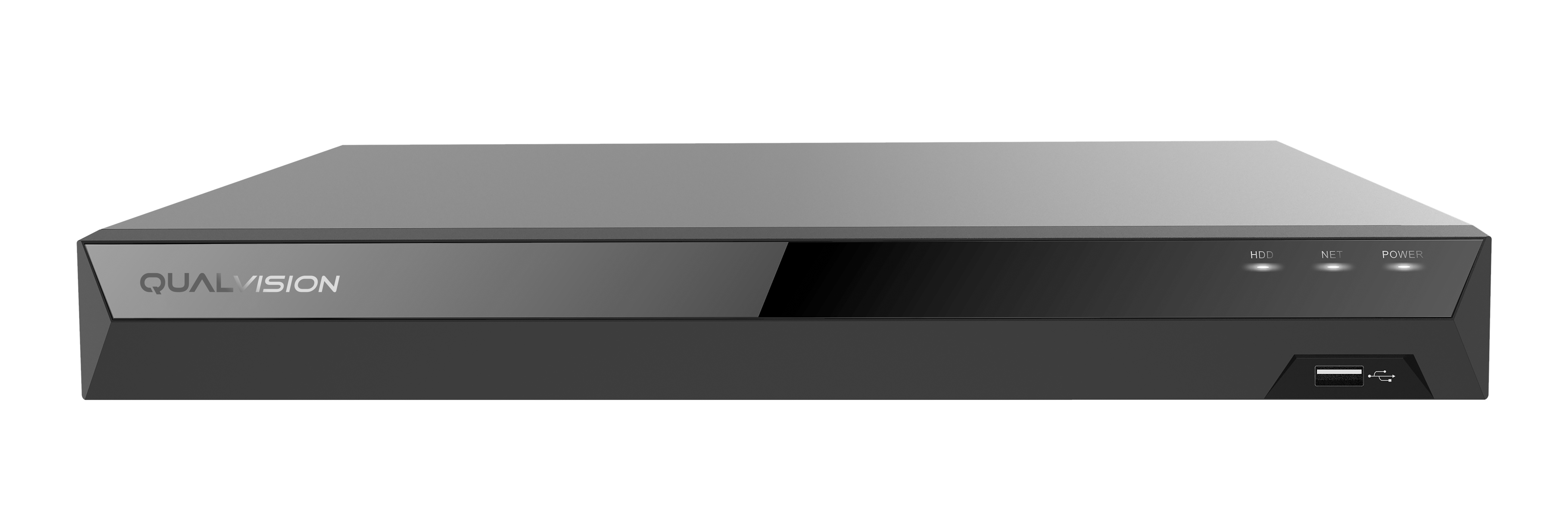

32 Channel 1U 2HDD Network Video Recorders
32-ch IP Video input, up to 12M
H.265+/H.265 video compression
Incoming/Outgoing Bandwidth: 256M/256M
Playback: 16-ch 1080P @ 30fps (H.265) /6-ch 5M @ 30fps/4-ch 4K @ 30fps/2-ch 12M @ 30fps
Supports mainstream cameras of ONVIF and RTSP protocol
VGA/HDMI Heterogeneous outputs, maximum resolution of HDMI is 4K
AI by NVR: Facial Recognition
| Video & Audio Input | |
| IP Video Input | 32-ch |
| Audio Input | 1-ch, RCA |
| Video & Audio Output | |
| HDMI | 1-ch, resolution: 4K (3840×2160)/30Hz, 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| VGA | 1-ch, resolution: 1920×1080/60Hz,1280×1024/60Hz, 1280×720/60Hz |
| Audio Output | 1-ch, RCA |
| Recording | |
| Compression | H.265+/H.265/H.264+/H.264 |
| Resolution | 12MP/8MP/5MP/4MP/3MP/1080P/720P/D1/CIF/QCIF |
| Bit Rate per Channel | 64Kbps ~ 10Mbps |
| Playback & Backup | |
| Playback Resolution | 12MP/8MP/5MP/4MP/3MP/1080P/720P/D1/CIF/QCIF |
| Decoding Capability | AI Disable: 2-ch @ 12M; 4-ch @ 8M; 6-ch @ 5M; 16-ch @ 1080P-H.265 & 15-ch @ 1080P-H.264; AI Enable: 2-ch @ 12M; 3-ch @ 8M; 4-ch @ 5M; 12-ch @ 1080P-H.265 & 11-ch @ 1080P-H.264 |
| Synchronous Playback | 16-ch |
| Playback Mode | Smart Playback/Normal/Time Division/Label/Event/Picture Playback |
| Backup Mode | USB Device/Network |
| AI | |
| AI By Recorder | Face Recognition |
| AI By Camera | Face Recognition, Perimeter Protection, Smart Motion Detection, ANPR |
| Face Recognition | |
| Facial Detection and Analytics | Human face capture, Face picture comparison, Face picture search |
| Face Picture Library | Up to 20 face databases with 20,000 images, with a total capacity of 8G |
| Facial Detection and Analytic Performance | 1-ch 8MP; 2-ch 4MP |
| Advanced Features | |
| Smart Detection (By IPC) | Motion Detection, Area Intrusion, Line crossing, Region Entrance /Region Exiting, Fast Moving, Object Missing, Unattended Object, Loitering Detection, Parking Detection, Face Detection, People Gathering Detection, Blurred Detection, Scene Change Detection, Audio Exception Detection, Human Detection, Vehicle Detection |
| Smart Playback | Line Crossing, Area Intrusion, Motion Detection, Face Detection, Human Detection, Vehicle Detection |
| Cloud Storage | Support |
| Cloud Upgrade | Support |
| Network | |
| Incoming Bandwidth | 256Mbps |
| Outgoing Bandwidth | 256Mbps |
| Ethernet | 1 RJ-45 10 /100 /1000Mbps self-adaptive Ethernet interface |
| Network Function | HTTPs, HTTP, TCP/IP, IPv4, UPnP, RTSP, UDP, SMTP, SNMP, Multicast, NTP, DHCP, DNS, IP Filter, DDNS, FTP, P2P, ONVIF |
| Smart Phone | IOS (iPhone, iPad), Android (Phone, Pad) |
| Hard Disk | |
| SATA | 2 SATA interface |
| Capacity | Up to 18TB capacity for each HDD |
| External Interface | |
| USB Interface | Front panel: 1 × USB 2.0 |
| Rear panel: 1 × USB 3.0 | |
| Alarm In | 8-ch |
| Alarm Out | 1-ch |
| General | |
| Power Supply | DC12V, 5A |
| Power Consumption | ≤10W (without HDD) |
| Working Environment | -10°C ~ +55°C (14°F ~ 131°F) /10% ~ 90%RH |
| Dimension (W×D×H) | 380 x 330.9 x 45 mm (14.96" × 13.03" × 1.77") |
| Weight | 2.9 KG (6.39 lb) |
