Camera
Image Sensor	1/2.7" Progressive Scan CMOS Sensor
Min. Illumination	Color: 0.006 Lux (F1.6, AGC ON), 0 Lux with light
Illumination Distance	30 m (IR light) 30 m (warm light)
Strobe Light	N/A
Smart IR	Support
Pan/Tilt/Rotation Range	Pan: 0° ~ 360° Tilt: 0° ~ 75° Rotation: 0° ~ 360°
Lens
Focal Length	2.8/3.6 mm
Aperture	F1.6
FOV	2.8 mm @ F1.6 Horizontal FOV: 110°, Vertical FOV: 59°, Diagonal FOV: 132° 3.6 mm @ F1.6 Horizontal FOV: 96°, Vertical FOV: 48°, Diagonal FOV: 114°
Lens Mount	M12
DORI
DORI	2.8 mm, D: 73.8m, O: 29.6m, R: 15.7m, I: 7.4m 3.6 mm, D: 94m, O: 37.6m, R: 18.8m, I: 9.4m
Compression Standard
Video Compression	H.264/H.264+/H.265/H.265+/MJPEG
H.264 Codec Profile	Base/Main/High profile
H.265 Codec Profile	Main Profile
Video Bit Rate	11 Kbps ~ 13 Mbps
Triple Streams	Support
Audio Compression	G.711A, G.711U
Audio Bit Rate	64 Kbps
Max. Image Resolution	6MP (3296 x 1856 )
Main Stream	50Hz: 20fps 6MP (3296 x 1856), 25fps 5MP (3072 x 1728) 25fps 4MP (2560 x 1440), 25fps 2MP (1920 x 1080) 60Hz: 20fps 6MP (3296 x 1856), 30fps 5MP (3072 x 1728) 30fps 4MP (P2560 x 1440), 30fps 2MP (1920 x 1080)
Sub Stream	50Hz: 25fps 720P(1280 × 720) 25fps D1(704 × 576), 25fps CIF(352 × 288) 60Hz: 30fps 720P(1280 × 720) 30fps D1(704 × 480), 30fps CIF(352 × 240)
Third Stream	50Hz: 25fps CIF(352 × 288) 60Hz: 30fps CIF(352 × 240)
Image Setting	Brightness/Contrast/Saturation/Hue/Sharpness
Shutter Time	Auto/Manual, 1/3~1/100000s
Day/Night	IR Cut Filter
Wide Dynamic Range	DWDR
Digital Noise Reduction	2D/3D DNR
BLC	Support
HLC	Support
ROI	Support
Rotate	Support
Smart Feature
Basic Event	Motion detection, video tampering
Smart Event	Smart motion detection ( support alarm triggering by specified target types ( human and vehicle)), line crossing, area intrusion, region entrance, region exiting (support alarm triggering by specified target types (human, vehicle) )
Face Detection	N/A
Network
Network Storage	NAS (NFS, SMB/CIFS)
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, Cloud
System Compatibility	Onvif (Profile S, Profile G, T), SDK
Security	HTTPS encryption, IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
User	Up to 40 users
Web Browsers	Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+
Mobile Surveillance	IOS, Android
Active Deterrence
Red/Blue Light Warning	N/A
Sound Warning	N/A
Interface
Communication interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
On-board storage	Up to 256GB
MIC	Support
Speaker	N/A
Audio I/O	N/A
Alarm I/O	N/A
Reset button	Support
General
Operating Conditions	-40°C ~ 60°C (-40°F ~ 140°F) Humidity 95% or less (non-condensing)
Power Supply	DC12V ± 10%
POE	PoE (802.3 af)
Power Consumption	MAX. 6.1 W
Protection Level	IP67
Material	Metal
Dimensions	Φ 102× 89.5 mm (Φ 4.01" × 3.52'')
Gross Weight	460g (1.01lb)

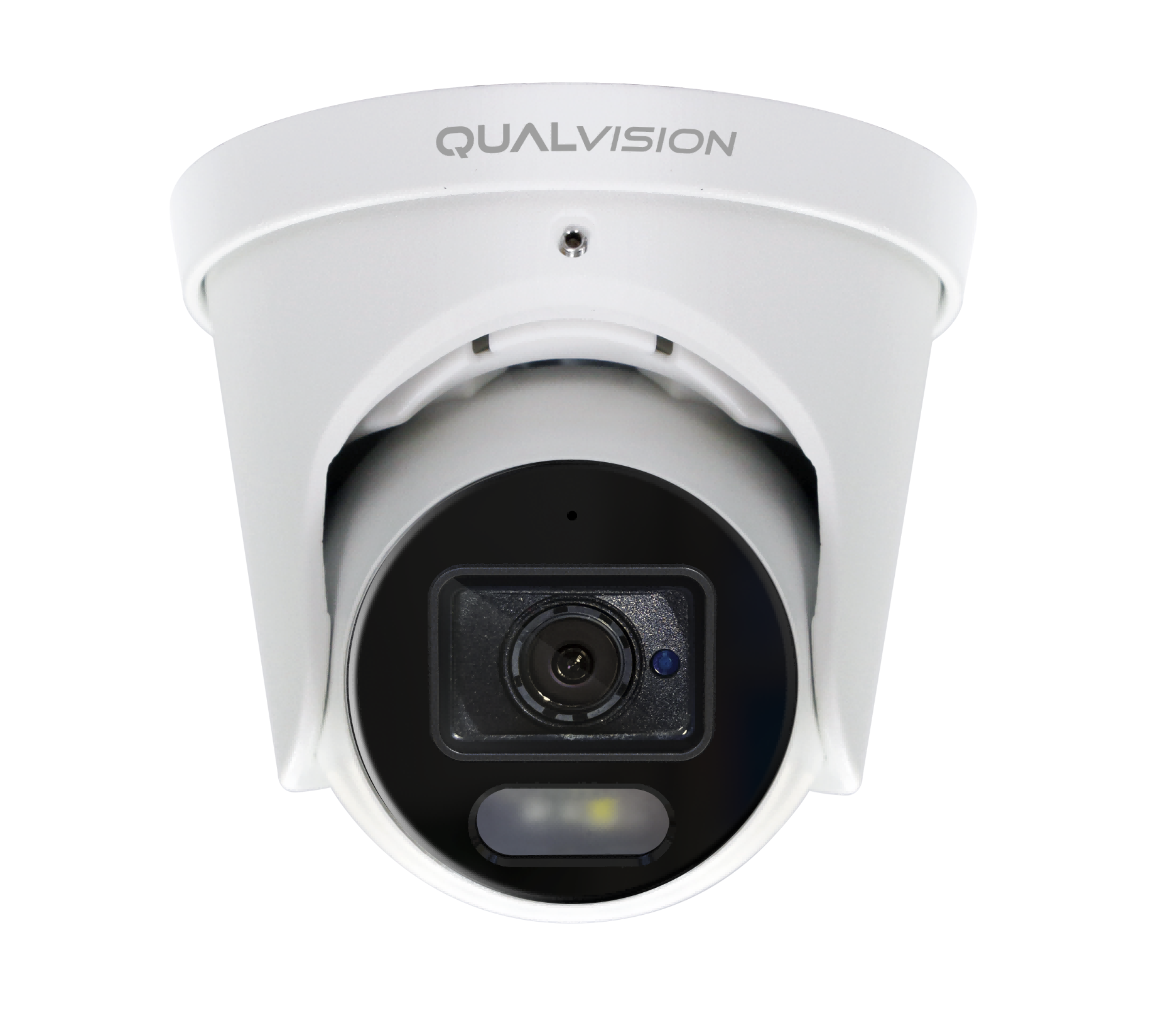

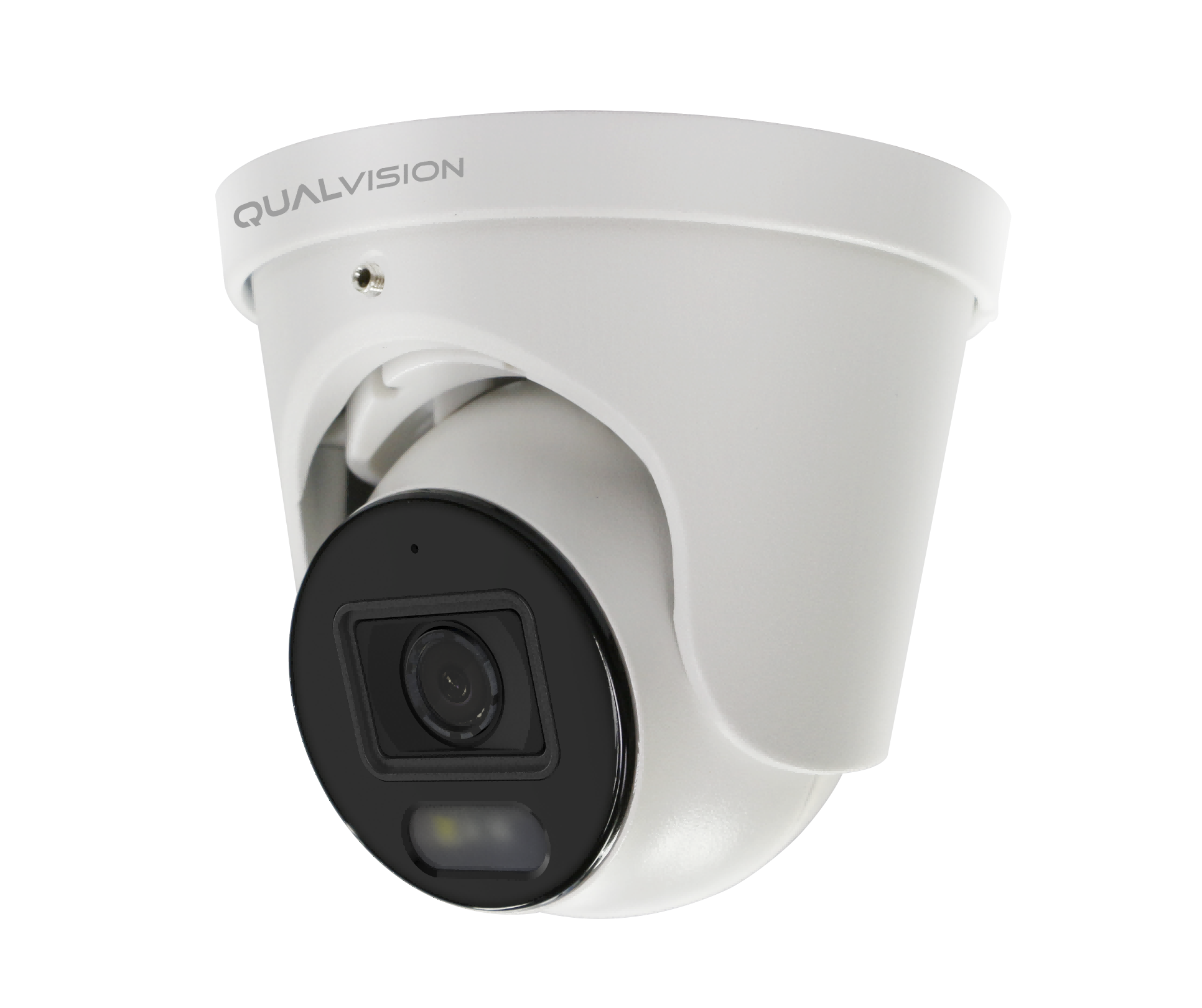

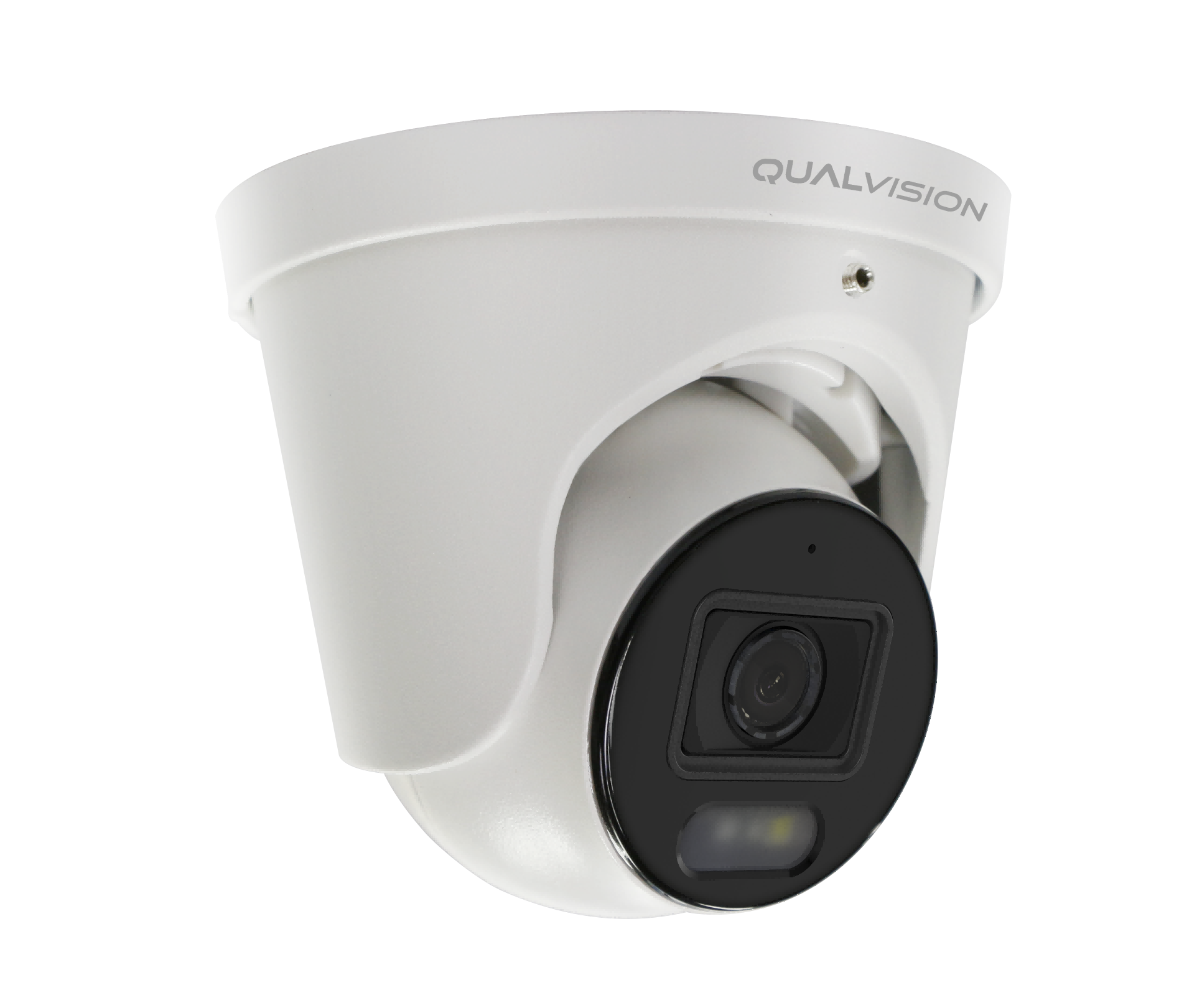

QV-IPC717664T9AB-TMUR16
